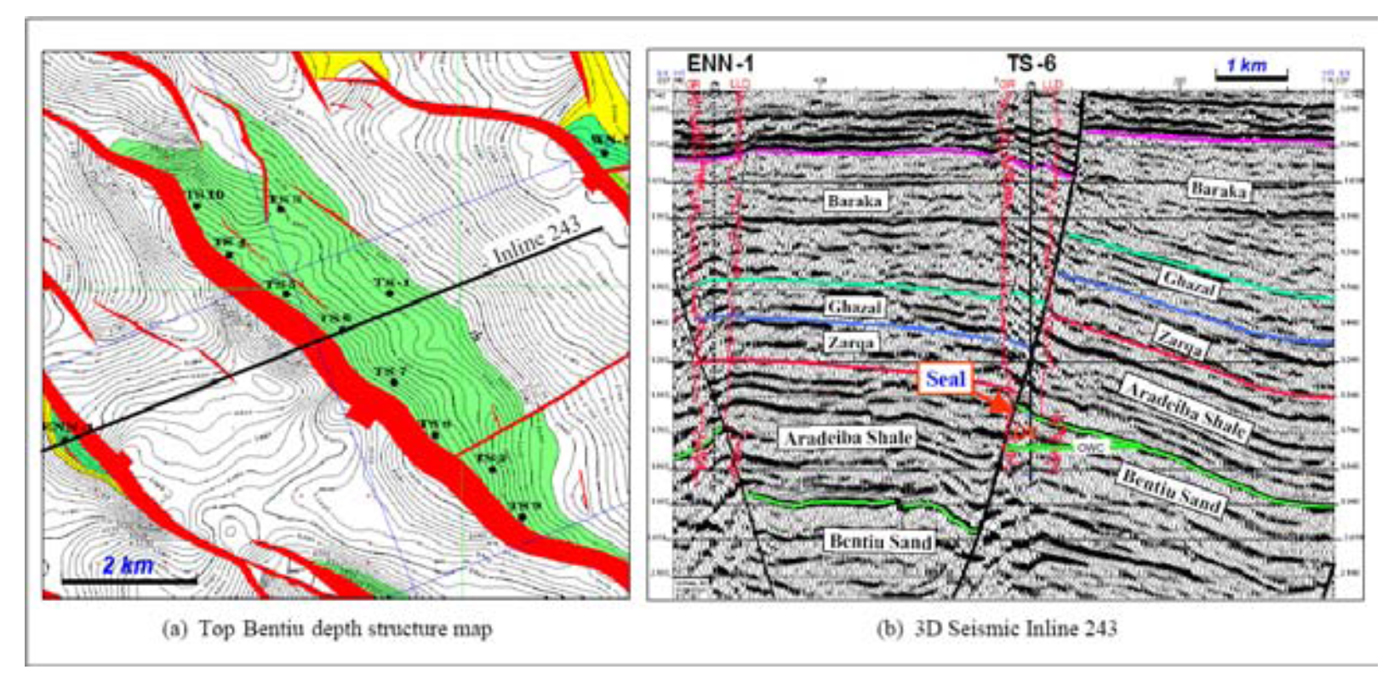

Figure 5. An excellent fault-sealing example. (a) The top Bentiu depth map shows a field charged to structural spill point with 140-m oil column. (b) 3D seismic section illustrates that the thick massive Aradeiba Shale (480 m) provided good top and lateral seal for Bentiu reservoir. The fault throw (430 m) is less than the thickness of Aradeiba Shale.
