| Jonah Field Area (27-T29N-R108W, Sublette Co, WY – McMurry Stud Horse Butte 13-27) | Pinedale Anticline Area (05-T30N-R108W, Sublette Co, WY – El Paso Wagon Wheel 1) |
 |
 |

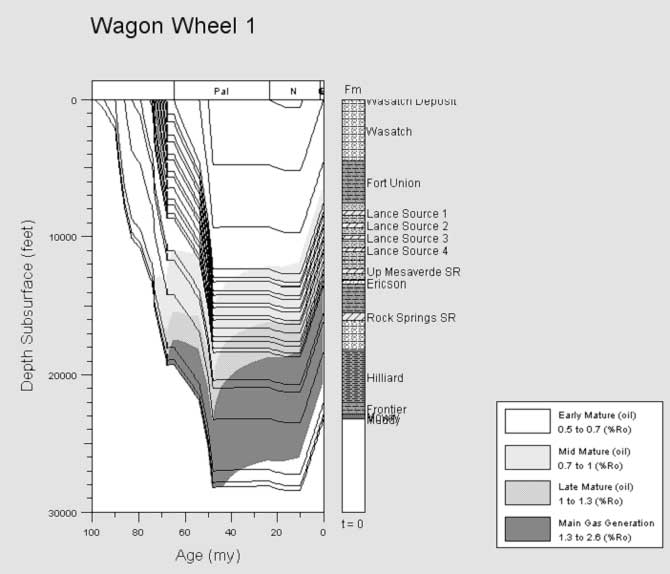

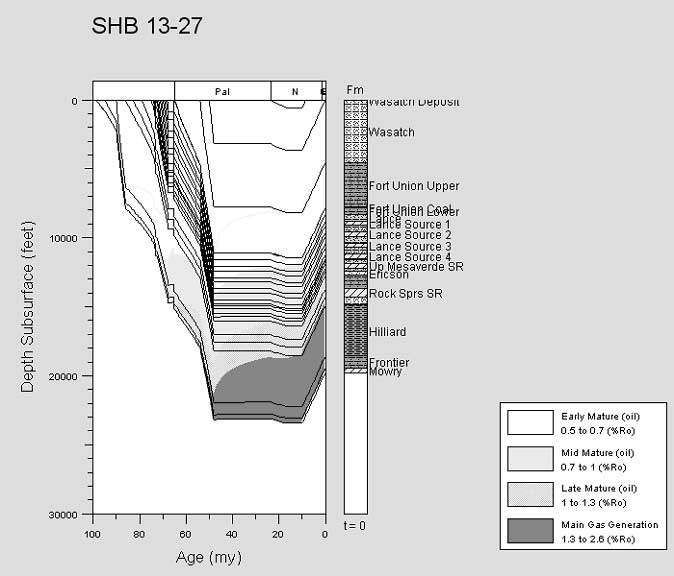

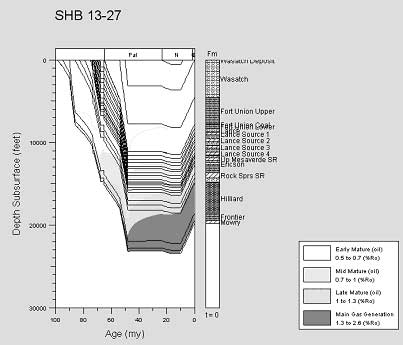

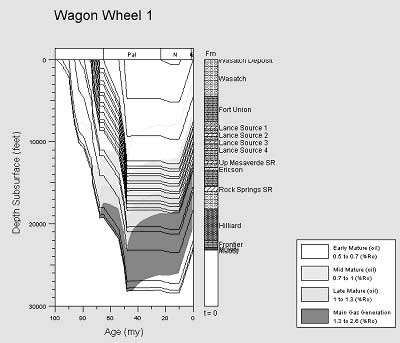

| a) SHB 13-27 - Burial History | d) Wagon Wheel 1 - Burial History |
 |
 |

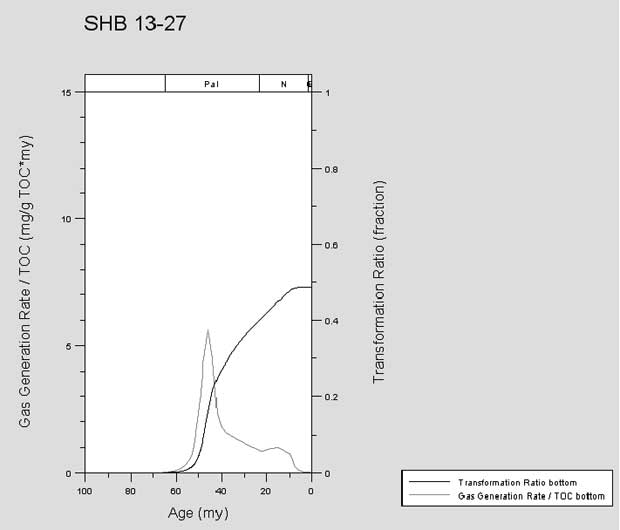

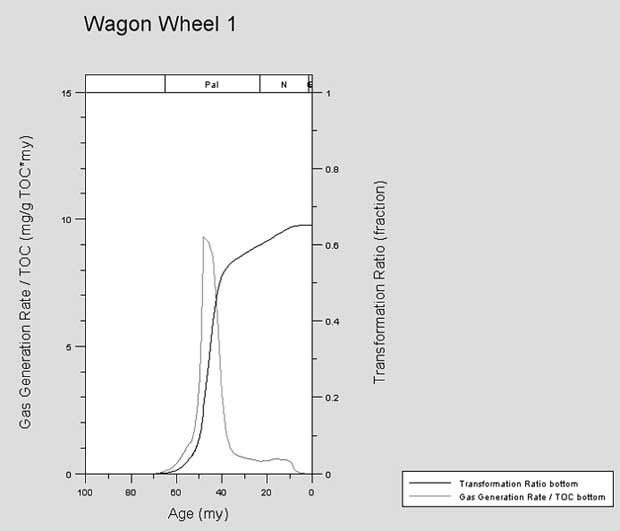

| b) SHB 13-27 - Mesaverde Source - Gas generation rate and TR. | e) Wagon Wheel 1 - Mesaverde Source - Gas generation rate and TR |
 |
 |

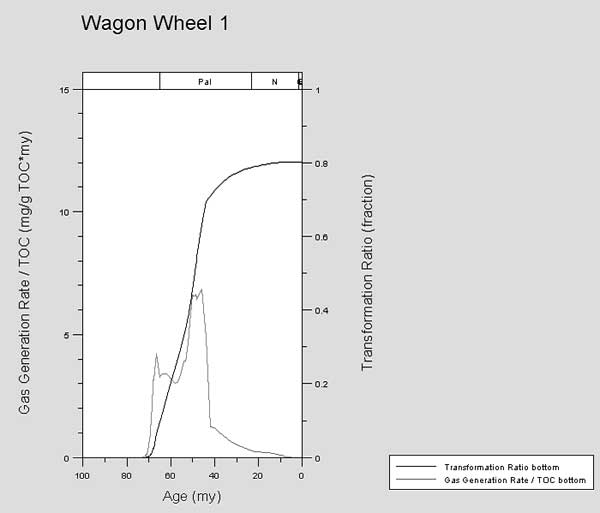

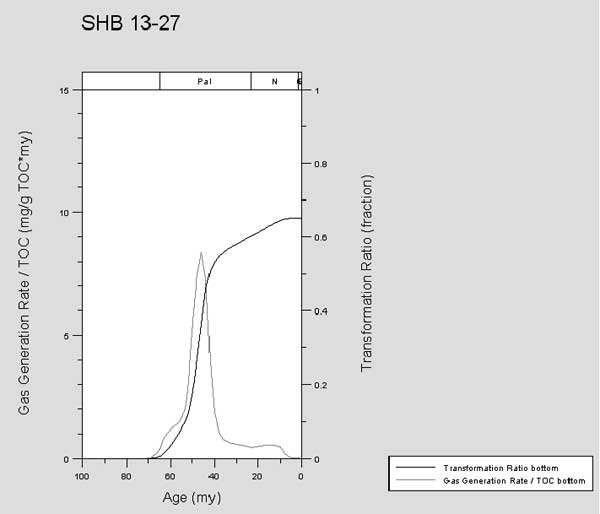

| c) SHB 13-27 - Rock Springs Source - Gas generation rate and TR | f) Wagon Wheel 1 – Rock Springs Source - Gas generation rate and TR |
Figure 1. Comparison of burial histories at Jonah vs. Pinedale and resulting gas generation timing.
