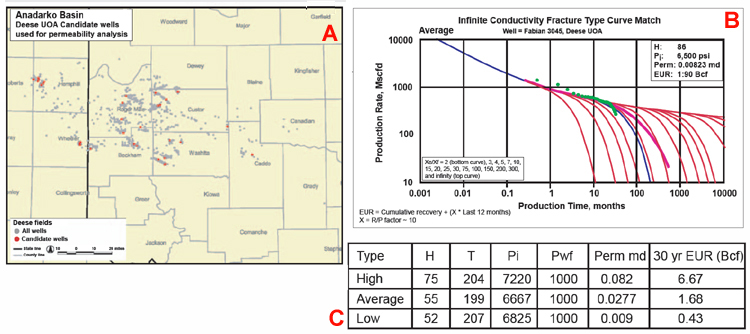

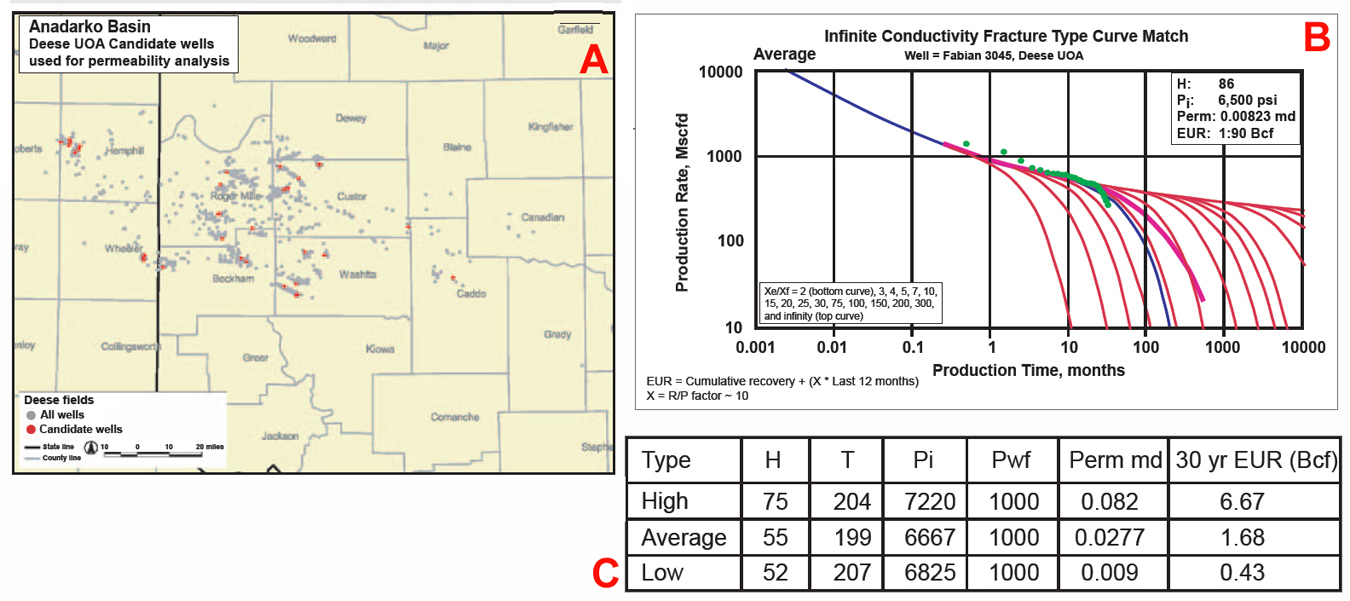

Figure 3.9. A. Map of Deese UOA, Anadarko Basin, showing candidate wells used for permeability analysis. B. Determination of permeability by type curve matching of production history. C. Table of averaged values for the Deese UOA (High, Average, Low).
