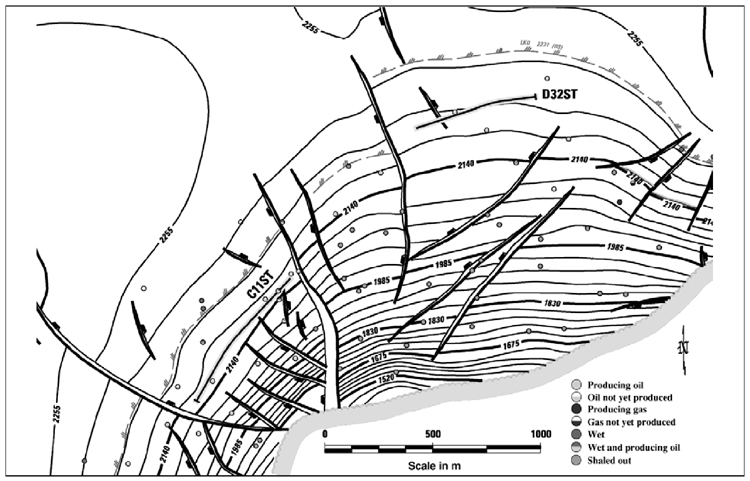

Figure 9. M4 structure map, showing the D32st lateral, which traversed a large fault block along structural strike, South Pass 62 field. Because a strong water drive was expected, the lateral was placed as far updip as possible. Depths are in feet.

Click to view net-oil isopach in relation to structure (sequence of Figures 8 and 9).
