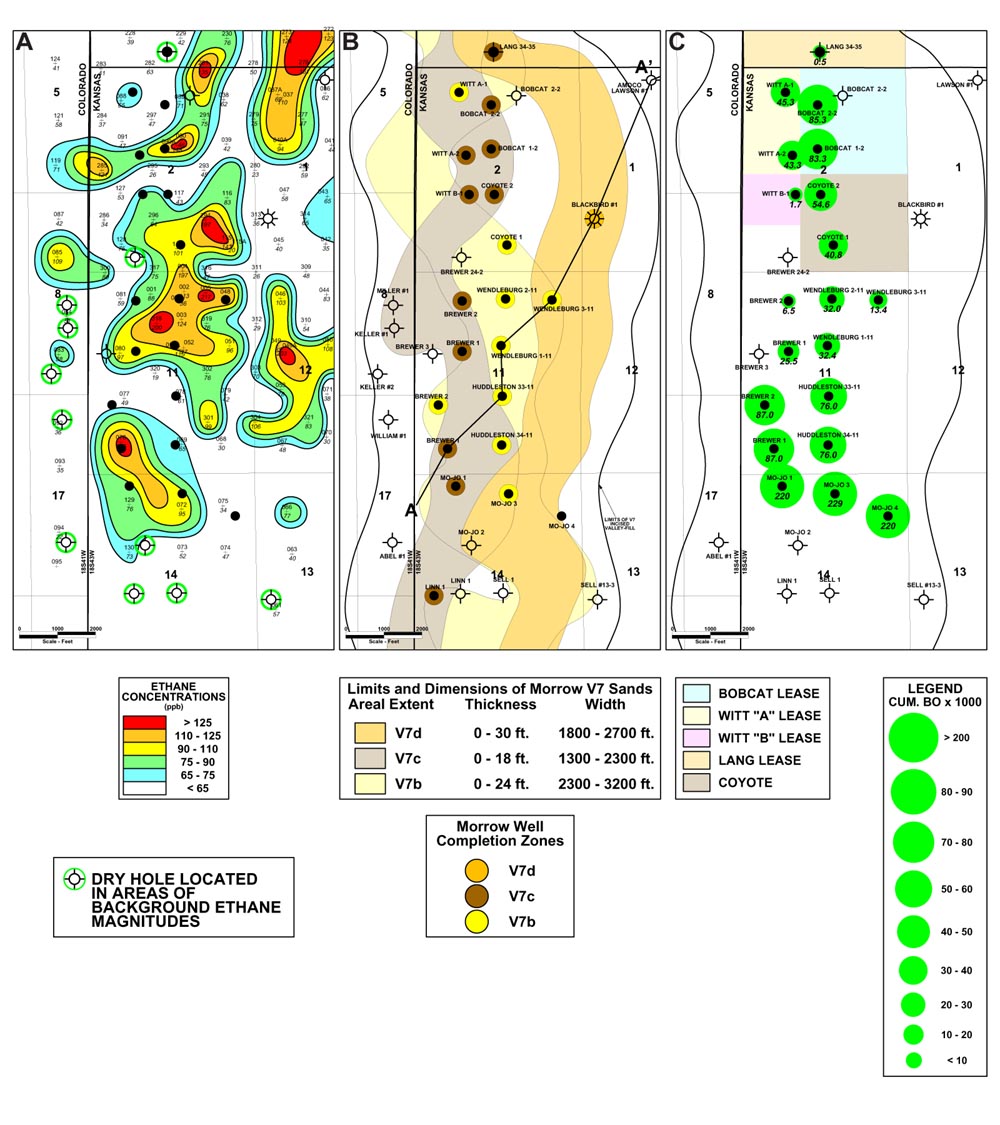

Figure 11. Summary of results of multi-disciplined approach for development of Moore-Johnson field. A. Ethane-magnitude contour map. Note locations of dry holes in areas of ethane background concentrations. B. Areal extent of Morrow V7 sandstone reservoirs at Moore-Johnson field. C. Cumulative production from wells in Moore-Johnson field.
