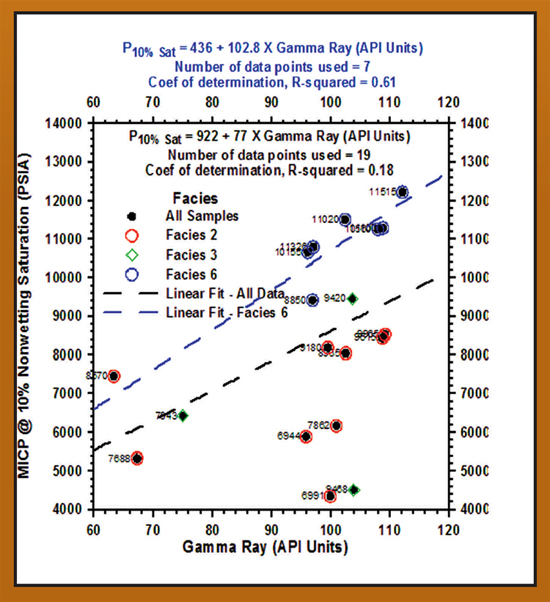

Figure 3-7. Cross plot of GR-log response and critical seal pressure shows a weak correlation for the six shale facies considered simultaneously. However, shale type 6 (blue line) exhibits a moderate to good correlation value.
