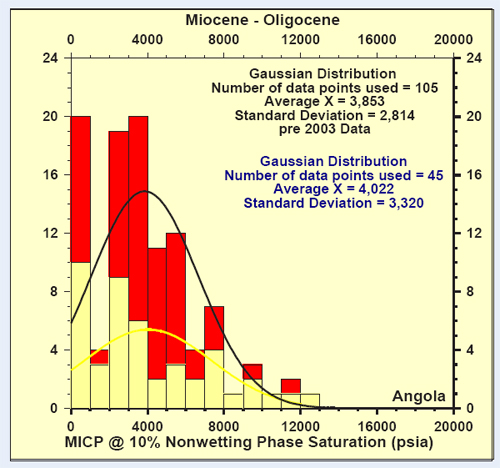

Figure 4-5. Frequency distribution showing maximum sealing potential (10 percent nonwetting phase saturation) of Tertiary mudstones, offshore Angola. These samples (yellow) fit within the range of other seal data (red) from offshore Angola wells.
