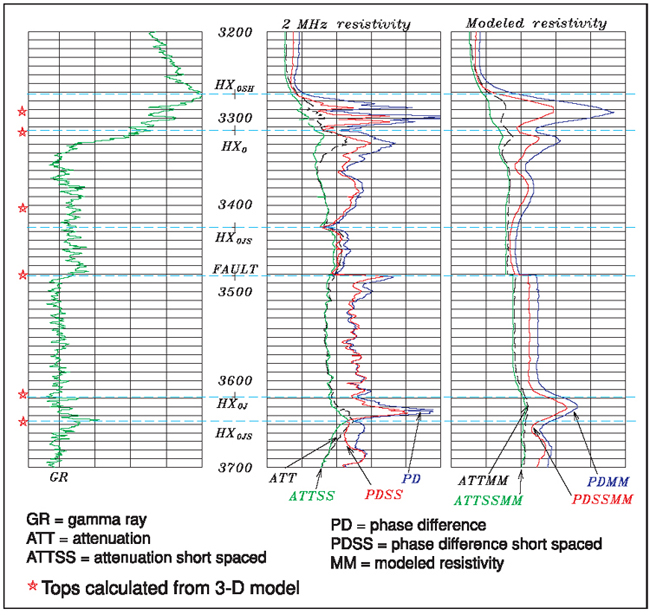

Figure 24. J-017 4 horizontal-well log, showing logging-while-drilling (LWD) and modeled logs. An excellent match was obtained. The location of this well is shown in Figure 23.
