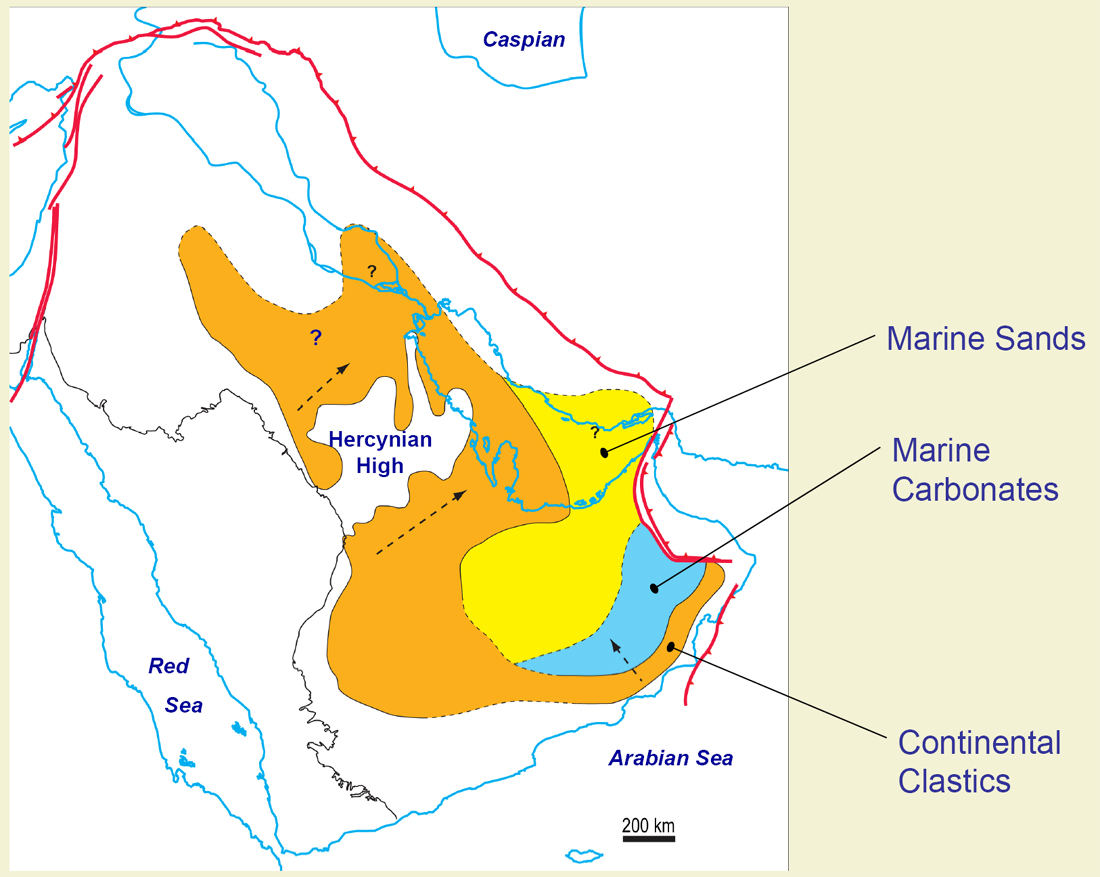

Figure 20. Early Permian environments of deposition, with continental clastics around a Hercynian high extending northeast from the easternmost part of the shield and a marine embayment in southern Saudi Arabia and Oman.
