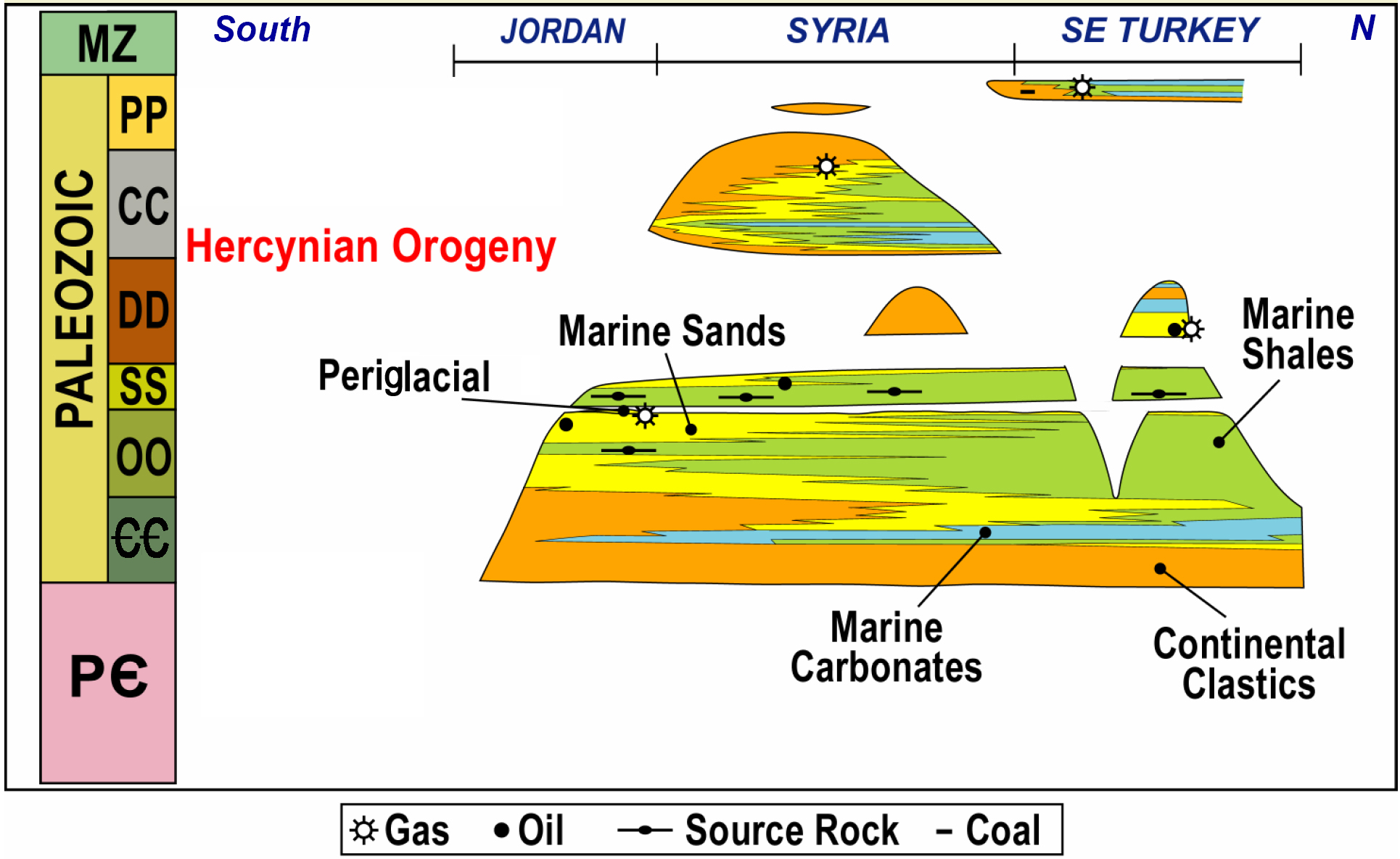

Figure 6. Diagrammatic south-north cross-section (2 in Figure 4), depicting generalized Paleozoic stratigraphy of the northern Arabian plate, with designation of key depositional environments as well as major units containing oil and gas reservoirs, source rock, and coal.
