Click on image to view enlargement.

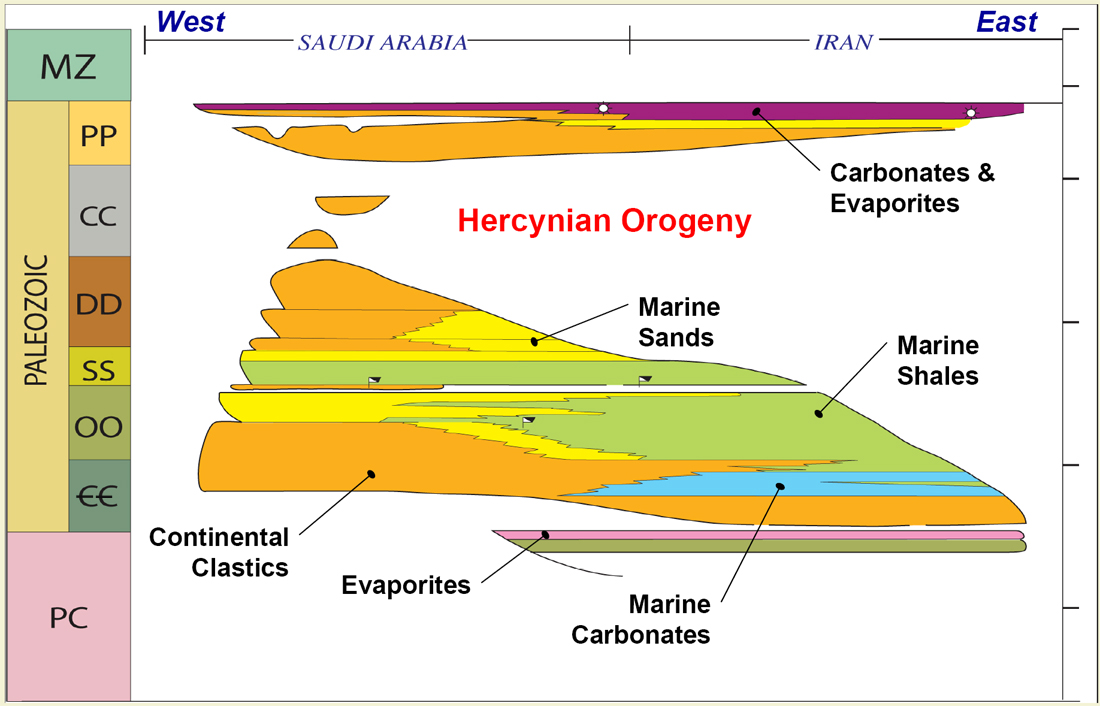

Figure 5. Diagrammatic east-west cross-section (1 in Figure 4), depicting generalized Paleozoic and Precambrian stratigraphy of the central Arabian plate, with key depositional environments of major units and locations of source rocks in the Silurian and Ordovician.
