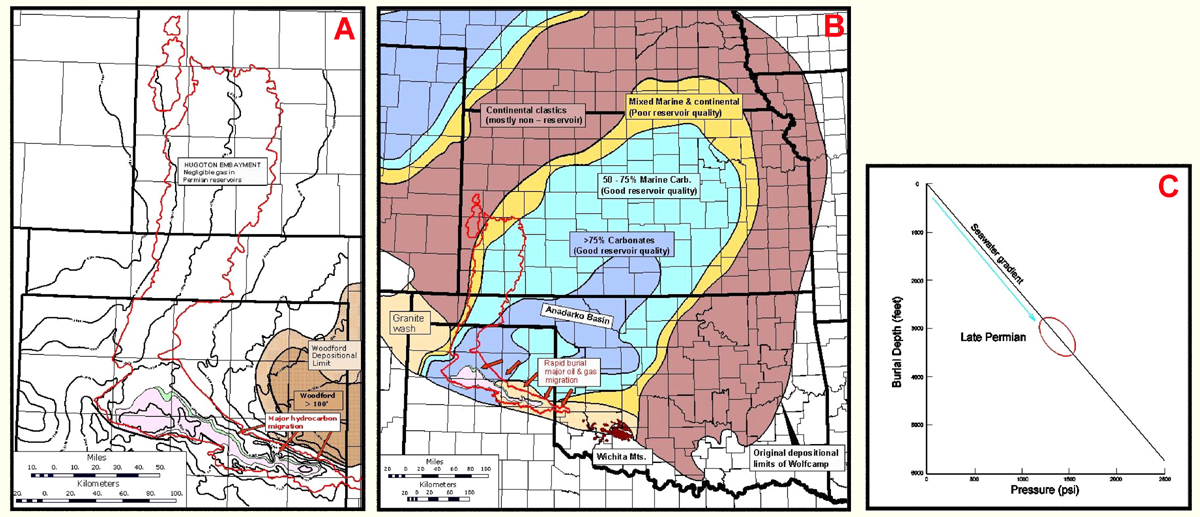

Figure 2-1. A. Wolfcampian structure, outline of present field and of accumulation during the Permian, and extent of the Woodford, from which there was significant generation/migration. B. Upper Wolfcampian facies, with reservoir characteristics, major migration, and outline of present field. C. Pressure plot for reservoir during Late Permian.
