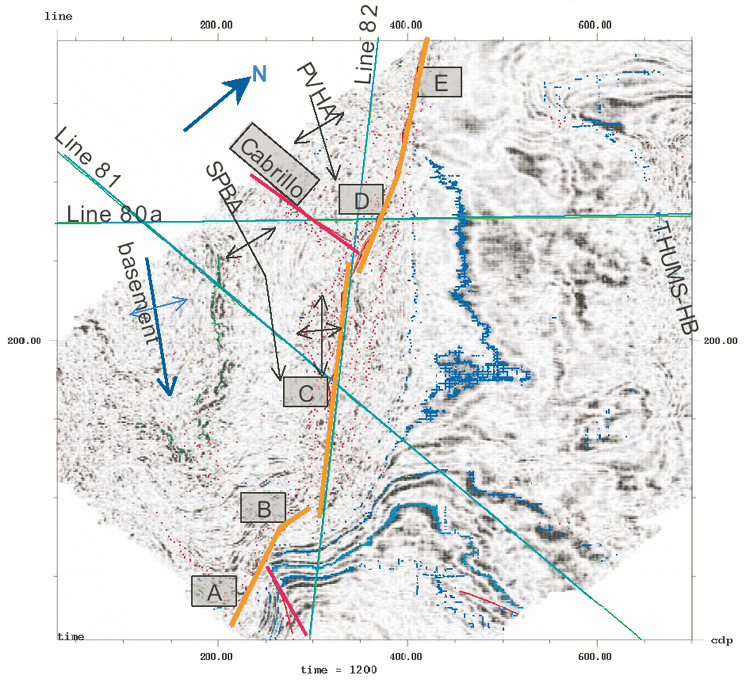

Figure 5. The location of the segments and features of the Palos Verdes fault through the Beta 3D survey area. Green lines indicate the locations of the three 16-channel seismic lines; background is a time slice of the 3D survey at 1200 ms.
