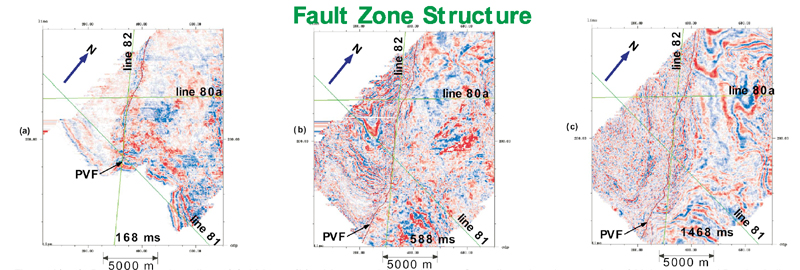

Figure 4(a-c). Beta 3D seismic time slices. (a) 188 ms, (b) 368 ms, and (c) 1468 ms. Green lines show intersection of high resolution 2D seismic lines with 3D time slice. The main trace of the Palos Verdes fault is shown in brown. Time slices reveal a releasing bend in the south of the study area and a restraining bend in the center of the study area. Although more difficult to see through multiples and poorer quality 3D above about 400 ms and below the basement contact, the fault trend is near vertical to at least 3 s.
