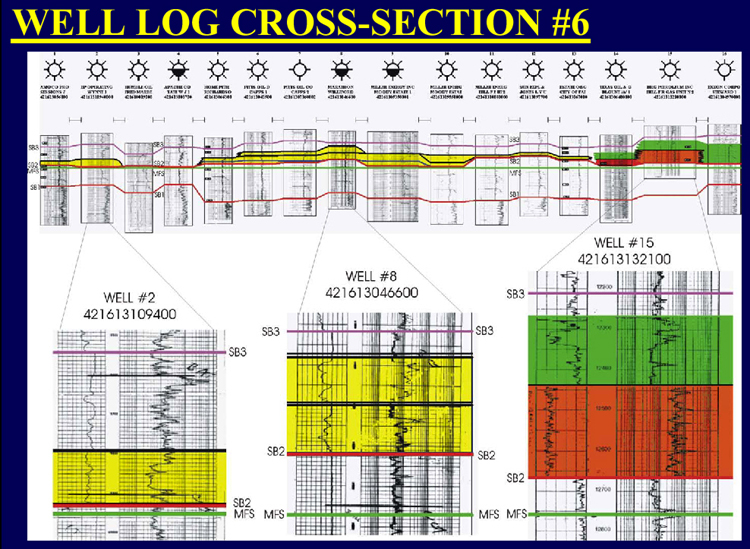

Figure 5. NW-SE dip-line Well Log Cross-Section 6–6’, Bossier Formation, Freestone and Leon Counties, Texas (Figure 1 (Right) for location). Division of the Bossier into lower and upper units by recognizing sequence boundaries SB-1, SB-2, and SB-3. Dark Reddish Orange--basin floor fan; Green--levee-channel fan complex; Yellow--deltas.
