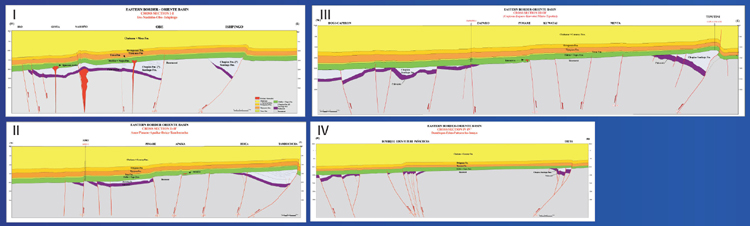

Figure 3-6. East-west cross-sections I, II, III, and IV, Eastern border, Oriente basin. I. Faulted anticlines associated with tectonic inversion (Ishpingo oil field); hangingwall faulted anticlines in left-lateral strike-slip system (Obe field). II. Faulted anticlines associated with tectonic inversion (Tambococha oil field); hangingwall faulted anticlines in right-lateral strike-slip system (Apaika field). III. Faulted anticlines associated with tectonic inversion (Tiputini and Capiron oil fields); footwall faulted anticlines in left-lateral strike-slip system (Pimare structure); hangingwall faulted anticlines in right-lateral strike-slip system (Minta structure). IV. Faulted anticlines associated with tectonic inversion (Imuya structure); footwall faulted anticlines in left-lateral strike-slip system (Yuturi oil field); hangingwall faulted anticlines in left-lateral strike-slip system (Dumbique field).
