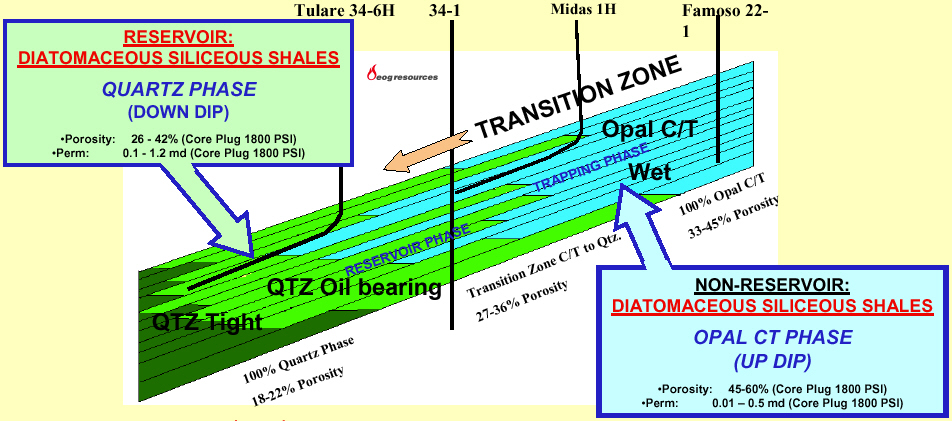

Figure 5. Diagrammatic description of “diagenetic trap.” Updip non-reservoir (diatomaceous siliceous shales) with Opal CT phase grades downdip into reservoior (diatomaceous siliceous shales). with quartz phase.
